Cosmostreamerfor DJI Osmo Pro/RAW

A small black box with a microcomputer inside allows you to remotely control the camera, output a video stream via HDMI, stream video on a local network or over the Internet. And many other possibilities ...

Cosmostreamer connects to DJI Osmo Pro/RAW and receives video and telemetry, which are then transmitted to the control program or/and to the HDMI output. Cosmostreamer also accepts commands from the control program or from specialized devices and converts them into commands for the camera.

Cosmostreamer may be connected to DJI Osmo Pro/RAW with USB cable (most stable way, but also DJI Wired Video adapter is needed) or with Wi-Fi.


Cosmostreamer uses the same protocol as standard DJI Go, so it has some limitations:
  • No audio!
    Camera transmits only video, no audio
    720p
    Native video stream resolution 720p@30
  • Video latency
    150-200ms

Features

  • Video receiving from DJI Osmo Pro/RAW and output on HDMI (video only, no audio!)
  • Video transmition via network in RTSP, SRT, RTMP, raw UDP H264 protocols
  • DJI Osmo Pro/RAW gimbal control from RC system (SBus/PWM/PPM), USB joystick/gamepad. Mouse and keyboard control available only from CosmoViewerNG for Windows
  • DJI Osmo Pro/RAW settings control
  • USB microphone/line-in support for adding audio into stream (Raspberry Pi 4B only)
  • Onboard video transcoding to lower resolution and bitrate for better streaming via mobile networks
  • Recording video from camera on internal microSD card or USB flash drive
  • 4G modem support
  • ZeroTier intergration for simpe device connection via Internet
01

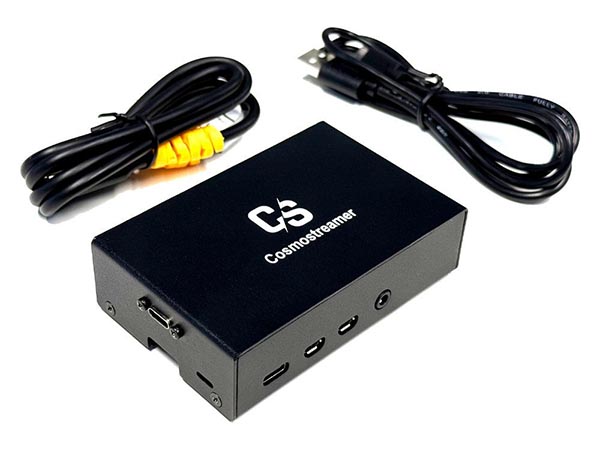

Cosmostreamer box RPI4B

Based on Raspberry Pi 4B. Two micro-HDMI outputs, Wi-Fi 2.4/5GHz, Ethernet 10/100/1000 Mbit/s, 4 USB ports. Power custom USB cable (or any 5V). Telemetry OSD on HDMI is NOT available.

Included: hardware, license key, email/Whatsapp/Telegram online support

May be used for Wi-Fi and USB connection to DJI Osmo Pro/RAW

$270
02

Cosmostreamer box RPI3A+

Based on Raspberry Pi 3A+. Full-size HDMI output, Wi-Fi 2.4/5GHz, 1 USB port. Power micro-USB (or any 5V). Telemetry OSD on HDMI is available.

Included: hardware, license key, email/Whatsapp/Telegram online support

May be used ONLY for USB connection to DJI Osmo Pro/RAW

$270
03

Cosmostreamer box RPI3B+

Based on Raspberry Pi 3B+. Full-size HDMI output, Wi-Fi 2.4/5GHz, Ethernet 10/100 Mbit/s, 4 USB 2.0 ports. Telemetry OSD on HDMI is available.

Included: hardware, license key, email/Whatsapp/Telegram online support

May be used ONLY for Wi-Fi connection to DJI Osmo Pro/RAW

$270
04

DIY license key only

A text string that must be saved on the Cosmostreamer for the camera to work. Read DIY instructions

$150

Accessories

RC panel

Only for RPI box versions. Allows to simply connect any standard RC system receivers with PWM/PPSM/SBus outputs.

$30

Applications

CosmoViewerNG is a main control application for Cosmostreamer.



Download

DIY

This is the cheapest and fastest way to get a Cosmostreamer!

Go to DIY page

FAQ

Q: Can I just unplug the power cable from the box??
A: Yes, the file system on the microSD is in read-only mode, so you can unplug the power cable without any problem
